High Performance Hydraulic Press Brake , 6m Press Brake Machine For 3mm Sheet Metal

Wuxi Smart CNC Equipment Group Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

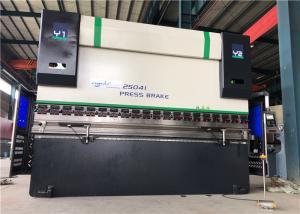

High Performance Hydraulic Press Brake , 6m Press Brake Machine For 3mm Sheet Metal

Brand Name : SMART CNC

Model Number : WC67K-300/6000

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 set/month

Delivery Time : 50 days

Packaging Details : Nude

Bending Width : 6000mm

Pressure : 3000KN

Motor : Siemens

Valve : Rexroth

Electrical : Schneider

Delivery time : 50 days

Warranty time : two years

Types : Torsion Bar

Contact Now

6-meter bending machine 3mm sheet metal bending machine 6 meter bending machine wc67k-160t/3200mm hydraulic press brake

Standard configuration:

1. Main Features:

1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2. Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.

3. Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4. Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety

2. Standard Equipment:

- Estun E21NC control System

- Powered Depth Y-axis&Back gauge X-axis

- DELTA Inverter controlled back gauge

- HIWIN Ball screws & Polished rod with 0,05mm accuracy.

- Plate Support Arms

- Germany Bosch-Rexroth Hydraulic

- Germany EMB Tubing connector

- Germany Siemens Main Motor

- Tele mecanique/Schneider Electrics

- Hydraulic &Electrical overload protection

- Top and Bottom Tooling(86°,R0.6mm)

- Safety Standards(2006/42/EC)

3. Safety Equipment:

1. EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

- Front finger Protection(Safety light curtain)

- South Korea Kacon Foot Switch(Level 4 of safety)

- Back metal safe fence with CE standards

- Safety relay with Monitor the pedal switch and safety protection

4. Estun E21 NC Control system:

- Back gauge and block control

- Control for general AC motors,frequency inverter

- Intelligent positioning

- Stock counter

- Holding/decompression time setting

- Program memory of up to 40 programs Up to 25 steps per program

- One side positioning

- Retract function

- One key backup/restore of parameters

- mm/inch

- Chinese/English

WC67Y/WC67K Series Technical Parameters

Model

Nominal pressure

(mm)

Worktable length

(mm)

Distance between housings

(mm)

Throat depth

(mm)

Stroke

(mm)

Max. opening height

(mm)

Power

(KW)

Dimension

LxWxH

(mm)

30T/1600 300 1600 1280 200 80 285 3 1600x1000x1600
35T/2000 350 2000 1480 200 80 285 4 2000x1100x1800
40T/2200 400 2200 1850 230 100 320 5.5 2200x1200x1910
40T/2500 400 2500 1850 230 100 320 5.5 2500x1200x1910
50T/2500 500 2500 1850 230 100 320 5.5 2500x1200x2000
63T/2500 630 2500 1900 250 100 320 5.5 2500x1300x2210
63T/3200 630 3200 2500 250 100 320 5.5 3200x1300x2210
80T/2500 800 2500 1900 300 100 320 7.5 2500x1400x2300
80T/3200 800 3200 2500 320 100 350 7.5 3200x1500x2300
80T/4000 800 4000 3000 320 100 350 7.5 4000x1500x2400
100T/2500 1000 2500 1900 320 120 320 7.5 2500x1600x2400
100T/3200 1000 3200 2500 320 120 370 7.5 3200x1600x2600
100T/4000 1000 4000 3000 320 120 370 7.5 4000x1600x2700
125T/3200 1250 3200 2500 320 120 370 7.5 3200x1600x2600
125T/4000 1250 4000 3000 320 120 370 7.5 4000x1600x2700
160T/3200 1600 3200 2500 320 200 460 11 3200x1700x2700
160T/4000 1600 4000 3000 320 200 460 11 4000x1700x2800
160T/5000 1600 5000 4000 320 200 460 11 5000x1900x3100
160T/6000 1600 6000 4940 320 200 460 11 6000x1900x3200
200T/3200 2000 3200 2500 320 200 460 11 3200x1950x2800
200T/4000 2000 4000 3000 320 200 460 11 4000x1950x2800
200T/5000 2000 5000 4000 320 200 460 11 5000x1950x3000
200T/6000 2000 6000 5000 320 200 460 11 6000x1950x3300
250T/3200 2500 3200 2500 400 250 590 18.5 3200x2000x3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000x2000x3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000x2000x3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000x2000x3400
300T/3200 3000 3200 2530 400 250 590 22 3200x2000x3450
300T/4000 3000 4000 3000 400 250 590 22 4000x2000x3450
300T/5000 3000 5000 4000 400 250 590 22 5000x2000x3450
300T/6000 3000 6000 5000 400 250 590 22 6000x2000x3450
400T/4000 4000 4000 3000 400 250 590 30 4000x2180x3400
400T/5000 4000 5000 4000 400 250 590 30 5000x2180x3500
400T/6000 4000 6000 5000 400 250 590 30 6000x2180x3800
500T/5000 5000 5000 4000 400 250 590 45 5050x3500x3700
500T/6000 5000 6000 5000 400 320 590 45 6050x3500x3700
600T/4000 6000 4000 3000 400 320 590 55 4050x4500x3700
600T/6000 6000 6000 5000 400 320 590 55 6050x4500x3700
800T/6000 8000 6000 5000 400 320 590 55 6300x4500x6000

Note: No notice if any changes of the above statistics made.
