Streamlined Hydraulic Sheet Metal Press Brake Perfect Bending Effect

Wuxi Smart CNC Equipment Group Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

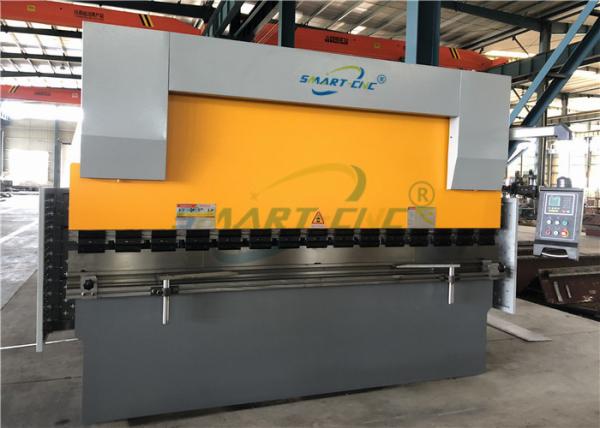

Streamlined Hydraulic Sheet Metal Press Brake Perfect Bending Effect

Brand Name : SMART CNC

Model Number : WC67K-125/3200

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 set/month

Delivery Time : 30 days

Packaging Details : Nude

Bending Width : 3200mm

Pressure : 1250KN

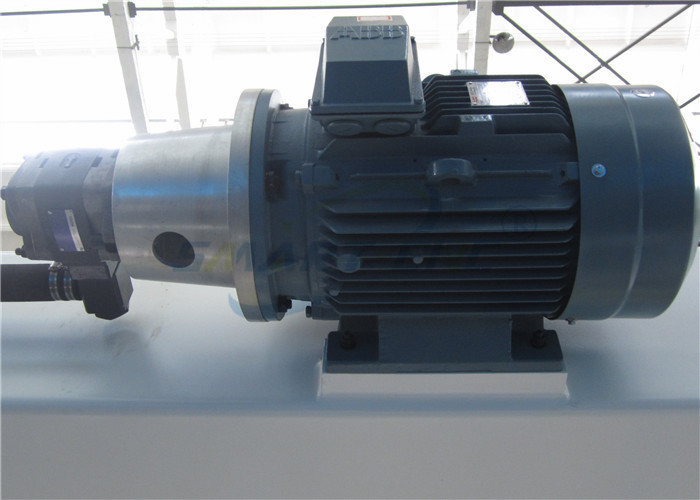

Motor : Siemens

Valve : Rexroth

Electrical : Schneider

Delivery time : 40 days

Warranty time : two years

Servo : Japan

Contact Now

160t 100 300 400 Tons 3mm 6mm 8mm 10mm 12mmm 6-Meter 6 8 10 12 Meter Mini Small Sheet Metal Hydraulic Press Brake

Main Features:

1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

2. SMART CNC PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.

3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.

4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.

5. Ball screw and line guide was designed to improve precision.

6. E-Z fast wedge clamping was designed to change tools quickly.

7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.


Standard Equipment:

1. System Intermediate Upper clamps with Anti Wedges

2. Plate Support Arms

3. Powered Depth Axis

4. Backstop

5. Light guards

6. Top and Bottom Tooling

7. Estun E21 NC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/SchneiderElectrics

10. Hydraulic and Electrical overload protection

11. Squaring Arm and Front Support Arms

12. Delta inverter with ball screw and polished rod with 0.05 mm accuracy.

13. Side guard is standard meeting CE regulations.

Estun E21s NC Press Brake Control system:

1. Monochrome LCD Box Panel.

2. Integral factor programmable freely

3. Automatic positioning control

4. Spindle allowance offset

5. Internal time relay

6. Stock counter

7. Backgauge position display, resolution in 0.01mm

The best bending results You can bend longer and deeper parts with standard AC/MB7-Bend Series.


WC67Y/WC67K Series Technical Parameters

Model

Nominal pressure

(mm)

Worktable length

(mm)

Distance between housings

(mm)

Throat depth

(mm)

Stroke

(mm)

Max. opening height

(mm)

Power

(KW)

Dimension

LxWxH

(mm)

30T/1600 300 1600 1280 200 80 285 3 1600x1000x1600
35T/2000 350 2000 1480 200 80 285 4 2000x1100x1800
40T/2200 400 2200 1850 230 100 320 5.5 2200x1200x1910
40T/2500 400 2500 1850 230 100 320 5.5 2500x1200x1910
50T/2500 500 2500 1850 230 100 320 5.5 2500x1200x2000
63T/2500 630 2500 1900 250 100 320 5.5 2500x1300x2210
63T/3200 630 3200 2500 250 100 320 5.5 3200x1300x2210
80T/2500 800 2500 1900 300 100 320 7.5 2500x1400x2300
80T/3200 800 3200 2500 320 100 350 7.5 3200x1500x2300
80T/4000 800 4000 3000 320 100 350 7.5 4000x1500x2400
100T/2500 1000 2500 1900 320 120 320 7.5 2500x1600x2400
100T/3200 1000 3200 2500 320 120 370 7.5 3200x1600x2600
100T/4000 1000 4000 3000 320 120 370 7.5 4000x1600x2700
125T/3200 1250 3200 2500 320 120 370 7.5 3200x1600x2600
125T/4000 1250 4000 3000 320 120 370 7.5 4000x1600x2700
160T/3200 1600 3200 2500 320 200 460 11 3200x1700x2700
160T/4000 1600 4000 3000 320 200 460 11 4000x1700x2800
160T/5000 1600 5000 4000 320 200 460 11 5000x1900x3100
160T/6000 1600 6000 4940 320 200 460 11 6000x1900x3200
200T/3200 2000 3200 2500 320 200 460 11 3200x1950x2800
200T/4000 2000 4000 3000 320 200 460 11 4000x1950x2800
200T/5000 2000 5000 4000 320 200 460 11 5000x1950x3000
200T/6000 2000 6000 5000 320 200 460 11 6000x1950x3300
250T/3200 2500 3200 2500 400 250 590 18.5 3200x2000x3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000x2000x3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000x2000x3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000x2000x3400
300T/3200 3000 3200 2530 400 250 590 22 3200x2000x3450
300T/4000 3000 4000 3000 400 250 590 22 4000x2000x3450
300T/5000 3000 5000 4000 400 250 590 22 5000x2000x3450
300T/6000 3000 6000 5000 400 250 590 22 6000x2000x3450
400T/4000 4000 4000 3000 400 250 590 30 4000x2180x3400
400T/5000 4000 5000 4000 400 250 590 30 5000x2180x3500
400T/6000 4000 6000 5000 400 250 590 30 6000x2180x3800
500T/5000 5000 5000 4000 400 250 590 45 5050x3500x3700
500T/6000 5000 6000 5000 400 320 590 45 6050x3500x3700
600T/4000 6000 4000 3000 400 320 590 55 4050x4500x3700
600T/6000 6000 6000 5000 400 320 590 55 6050x4500x3700
800T/6000 8000 6000 5000 400 320 590 55 6300x4500x6000

Note: No notice if any changes of the above statistics made.
