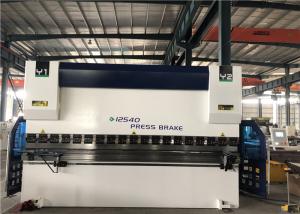

Wrought Iron Hydraulic Shop Press Brake 63T Overload Protection High Accuracy

Brand Name : SMART CNC

Model Number : WC67K-40/2500

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 set/month

Delivery Time : 30 days

Packaging Details : Nude

Bending Width : 2500mm

Pressure : 630KN

Motor : Siemens

Valve : Rexroth

Electrical : Schneider

Delivery time : 20 days

Warranty time : two years

Types : Torsion Bar

Contact Now

63ton 2500 steel plate bending machine wrought iron bending machine stainless steel sheet bending machine

Standard configuration:

1. Main Features:

1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2. Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.

3. Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4. Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety

2. Standard Equipment:

- Estun E21NC control System

- Powered Depth Y-axis&Back gauge X-axis

- DELTA Inverter controlled back gauge

- HIWIN Ball screws & Polished rod with 0,05mm accuracy.

- Plate Support Arms

- Germany Bosch-Rexroth Hydraulic

- Germany EMB Tubing connector

- Germany Siemens Main Motor

- Tele mecanique/Schneider Electrics

- Hydraulic &Electrical overload protection

- Top and Bottom Tooling(86°,R0.6mm)

- Safety Standards(2006/42/EC)

Features
1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by Estun NC-E21 Programmable digital control assuring accurate repeatability.
2. Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
3. Estun NC-E21 programmable digital control stores up to 40 unique programs with 25 automatic progressive bending steps in each individual program, assuring production accuracy & repeatability every time.
4. Estun NC-E21 programmable hardened ballscrew back-gauge system, simply enter the desired measurement into the controller and press go, the backgauge then will move quickly into the position you have requested. The superior hardened ballscrew system eliminates any backlash that leadscrew type machines produce.
5. Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style punch holder with an adjustable wedge clamping system for crowning. Intermediate clamp has safety key to stop punch dropping.
6. Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
7. Conveniently mounted control box on pendant for quick swivel and adjustments.
8. Mono-block steel frame design, welded then machined to ensure minimal bed deflection under load
9. Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
10. European Intermediate clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
11. Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
12. Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
13. Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation.
14. Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
15. Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
16. The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
17. Reinforced side frames providing addition support strength to machine throat
18. Mild steel capacity is rated on hot rolled material with 250MPA

WC67Y/WC67K Series Technical Parameters

Model

Nominal pressure

(mm)

Worktable length

(mm)

Distance between housings

(mm)

Throat depth

(mm)

Stroke

(mm)

Max. opening height

(mm)

Power

(KW)

Dimension

LxWxH

(mm)

30T/1600 300 1600 1280 200 80 285 3 1600x1000x1600
35T/2000 350 2000 1480 200 80 285 4 2000x1100x1800
40T/2200 400 2200 1850 230 100 320 5.5 2200x1200x1910
40T/2500 400 2500 1850 230 100 320 5.5 2500x1200x1910
50T/2500 500 2500 1850 230 100 320 5.5 2500x1200x2000
63T/2500 630 2500 1900 250 100 320 5.5 2500x1300x2210
63T/3200 630 3200 2500 250 100 320 5.5 3200x1300x2210
80T/2500 800 2500 1900 300 100 320 7.5 2500x1400x2300
80T/3200 800 3200 2500 320 100 350 7.5 3200x1500x2300
80T/4000 800 4000 3000 320 100 350 7.5 4000x1500x2400
100T/2500 1000 2500 1900 320 120 320 7.5 2500x1600x2400
100T/3200 1000 3200 2500 320 120 370 7.5 3200x1600x2600
100T/4000 1000 4000 3000 320 120 370 7.5 4000x1600x2700
125T/3200 1250 3200 2500 320 120 370 7.5 3200x1600x2600
125T/4000 1250 4000 3000 320 120 370 7.5 4000x1600x2700
160T/3200 1600 3200 2500 320 200 460 11 3200x1700x2700
160T/4000 1600 4000 3000 320 200 460 11 4000x1700x2800
160T/5000 1600 5000 4000 320 200 460 11 5000x1900x3100
160T/6000 1600 6000 4940 320 200 460 11 6000x1900x3200
200T/3200 2000 3200 2500 320 200 460 11 3200x1950x2800
200T/4000 2000 4000 3000 320 200 460 11 4000x1950x2800
200T/5000 2000 5000 4000 320 200 460 11 5000x1950x3000
200T/6000 2000 6000 5000 320 200 460 11 6000x1950x3300
250T/3200 2500 3200 2500 400 250 590 18.5 3200x2000x3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000x2000x3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000x2000x3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000x2000x3400
300T/3200 3000 3200 2530 400 250 590 22 3200x2000x3450
300T/4000 3000 4000 3000 400 250 590 22 4000x2000x3450
300T/5000 3000 5000 4000 400 250 590 22 5000x2000x3450
300T/6000 3000 6000 5000 400 250 590 22 6000x2000x3450
400T/4000 4000 4000 3000 400 250 590 30 4000x2180x3400
400T/5000 4000 5000 4000 400 250 590 30 5000x2180x3500
400T/6000 4000 6000 5000 400 250 590 30 6000x2180x3800
500T/5000 5000 5000 4000 400 250 590 45 5050x3500x3700
500T/6000 5000 6000 5000 400 320 590 45 6050x3500x3700
600T/4000 6000 4000 3000 400 320 590 55 4050x4500x3700
600T/6000 6000 6000 5000 400 320 590 55 6050x4500x3700
800T/6000 8000 6000 5000 400 320 590 55 6300x4500x6000

Note: No notice if any changes of the above statistics made.
