14m Q235A Q235B SS400 Light Pole Making Machine

Brand Name : SMART CNC

Model Number : PoleG500

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1 sets

Price : 9000-15000 USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets/months

Delivery Time : 3 weeks

Packaging Details : Wooden case

Application : Light pole manufacture

Material : Q235A/Q235B/SS400

Type : Round,Dual-arm,Production set,Dual-arm/Single-arm

Height : 2m-18m

Name : Competitive prices light steel pole mould production line

Color : green

Thickness : 3-10mm

After-sales service provided : Field maintenance and repair service

Power(w) : 46KW

Product name : light pole production line,solar power energy steel street light pole,First-class service light pole production line for overseas market

Weight : 9.9T

Automatic grade : Automatic

Contact Now

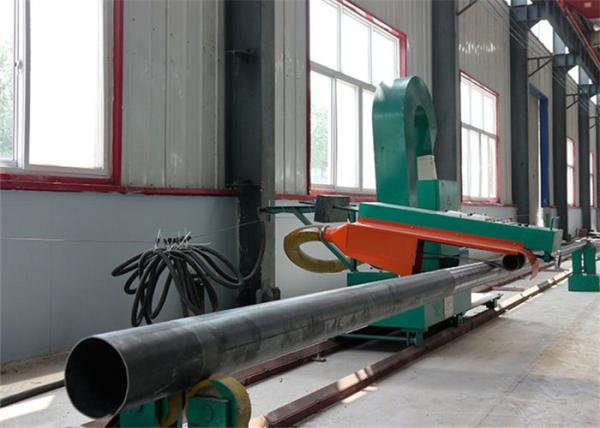

Automatic Street Lighting Pole Grinding Machine, Light Pole Production Line Machines 14meter

1). Parameters

NO. Model Value Unit
1 Diameter of grinding steel tube Ø320 mm
2 Length of grinding steel tube 12000 mm
3 Steel tube run around speed 5-10 turn/min
4 Grinding steel tube run speed 1100 mm/min

5

Measure l 13000 mm
w 2000 mm
h 800 mm
6 Weight 1500 kg

2). Description of machine

This machine steel tube adopt self-run and the movement of the machine in order tomove the steel tube. the machine is fitted with grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. it is speedy, efficient, saving workers and energy.it was the first choice for grinding and polishing every poles.

4). Spare parts supplier

NO Name Specification Qty Supplier
1 Sand belt motor 1.5 kw 1set Siemens beide
2 Walking adjustable motor 0.55kw 1set Siemens beide
3 Rotating motor 0.55 kw 1set Siemens beide
4 Dustless motor 3 kw 1set Chinese famous brand
5 Electric components 1set Schneider,Siemens
6 Reducer bwd150 1set Chinese famous brand
7 Rotating reducer bwd150 1set Chinese famous brand

14m Q235A Q235B SS400 Light Pole Making Machine14m Q235A Q235B SS400 Light Pole Making Machine
