Mild Steel Lighting 60mm Pole Bending Machine

Name: Mild Steel Lighting 60mm Pole Bending Machine
Brand: SMART CNC
Price: 9000 USD

Brand Name : SMART CNC

Model Number : R500

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1 sets

Price : 9000-15000 USD

Payment Terms : L/C, T/T

Supply Ability : 20 sets/months

Delivery Time : 2 months

Packaging Details : Wooden case

Pole Diamter : 60mm

Application : Light pole manufacture

Height : 5-12m

Name : Competitive prices light steel pole mould production line,Light Pole Automatic Production Line

Material : Mild steel

Radius : 500,700

Contact Now

Tube Bending Machine For Conical Pole, Pole Bending Machine, Lighting Pole Bending Machine

Description: This equipment composed by the board and bending mode, with two sets of molds. direct mode traction motor reducer, will die on the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler, economic benefits, compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.

No.	Model	Value		Unit	Note
1	Bending Diameter	φ90		Mm
2	Bending Radius	r500,r700		Mm	2 Sets Of Round Mould
3	Bending Tube Thickness	4		Mm
4	Motor Power	Model	y132s-6	Mm
		Power	3	Kw
		Rotate Speed	960	Rpm
5	Size	l	3000	Mm
		w	2300	Mm
		h	620	Mm
6	Weight	2300		Kg

Spare parts suppliers

NO	Name	Spec.	qty	Supplier
1	motor	3kw	1set	Siemens
2	reducer	zq250	1set	Chinese famous brand
3	electric components		1set	Schneider,Siemens
4	bending die	radius 500mm	1pcs	Chinese famous brand
5	bending die	radius 700mm	1pec	Chinese famous brand

Mild Steel Lighting 60mm Pole Bending Machine

Product Tags:

Conical Pole Tube Bending Machine

Conical Pole Bending Machine

Quality Mild Steel Lighting 60mm Pole Bending Machine wholesale

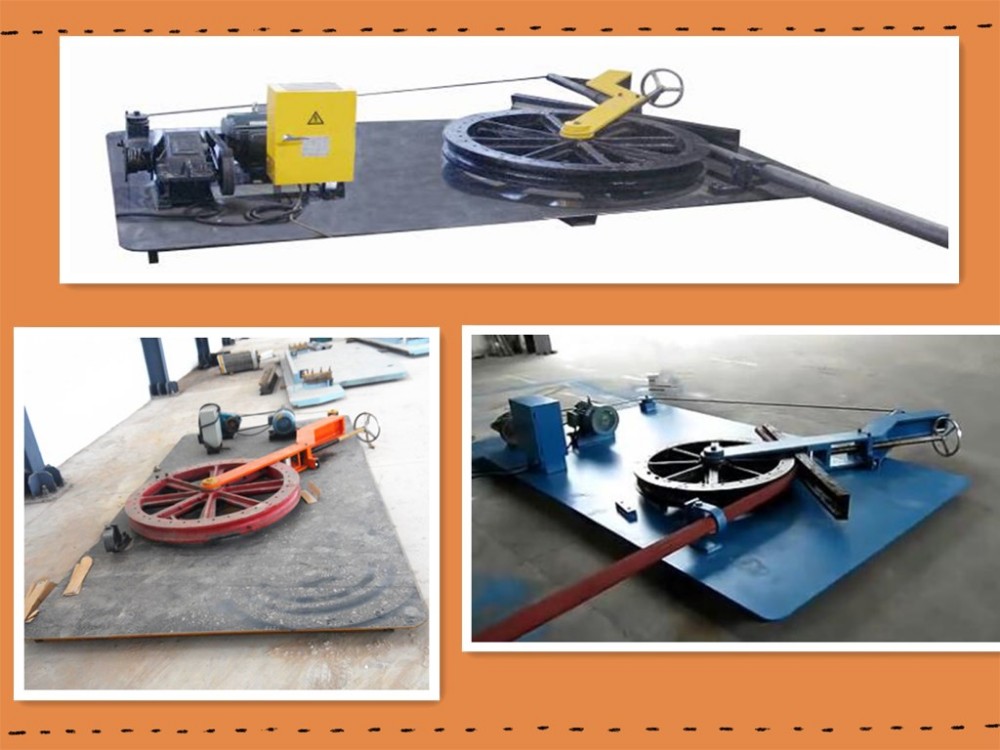

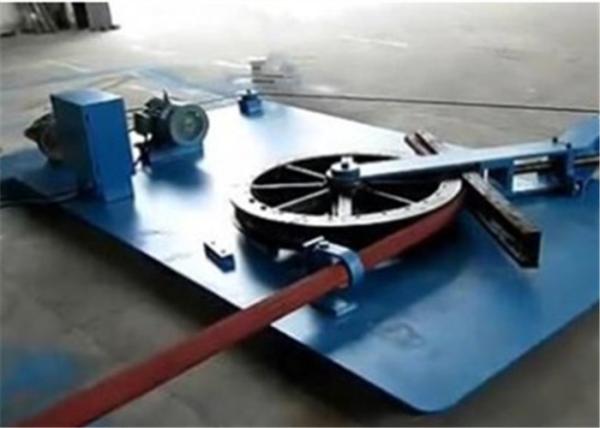

Mild Steel Lighting 60mm Pole Bending Machine Images
