Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles

Wuxi Smart CNC Equipment Group Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

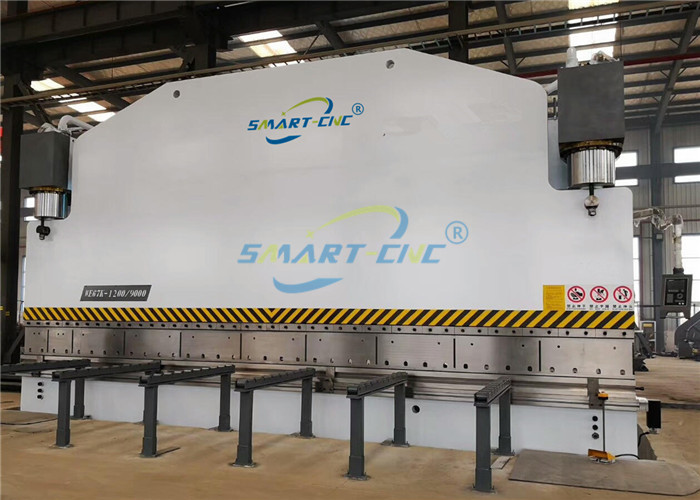

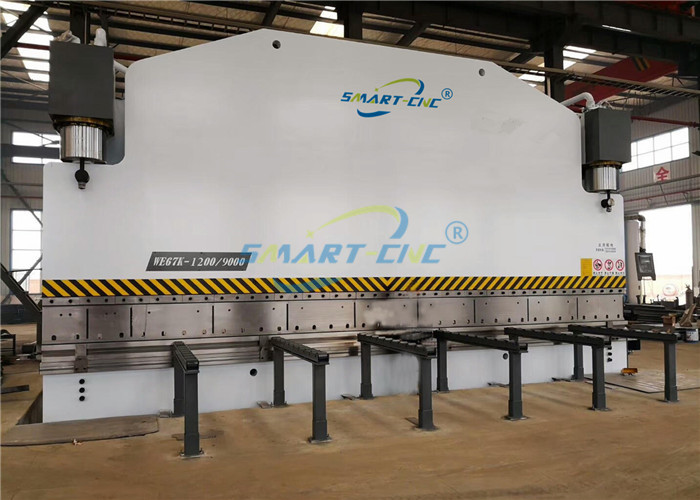

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles

Brand Name : SMART CNC

Model Number : 2-WE67K-300/6000

Certification : CE ISO TUV

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 10 SET/Month

Delivery Time : 80 days

Packaging Details : Nude

Name : CNC Tandem Press Brake

Pressure : 3000KN

Length : 6000mm

Axis : 2 axis

Speed : 70mm/s

Weight : 110000kgs

Motor : Siemens

Types : Hydraulic

Contact Now

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles 300ton 600ton 800ton 1200ton

Quick Detail:

Metal Plates Hydraulic CNC Tandem Press Brake for auto industry

Select And Use DELEM DA52 CNC Control System

Description:

1. Electro-hydraulic servo system,closed loop controls slider running accuracy.

2. The unique patented technology:bilateral deflection compensation of the large press brake .
3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.

5. The frame of machine is composed of tank, worktable, left and right housings and

ram. So it has high strength and good rigidity. Also it takes vibration to eliminate

stress.

6. Synchronization working principal of both machines:Adopting electric-hydraulic

proportional valve to ensure the synchronization of both machines.

7. Through computer, the operator could communicate with machine.

8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.

9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.

10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life

Applications:

CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.

Machine Parameters

Model Working Force (KN) Worktable Length (mm) Throat Depth (mm) Open Height (mm) Dimension (mm)
2-320/6000 2x3200 2x6000 720 870 2-6250x2614x5470
2-400/7000 2x4000 2x7000 720 870 2-7250x5170x5970
2-600/6000 2x6000 2x6000 1000 1000 2-6240x5960x5500
2-1000/6000 2x10000 2x6000 1400 1400 2-6240x6500x6600
2-1600/6000 2x16000 2x6000 1100 1250 2-9240x8200x8250
2-2000/9000 2x20000 2x9000 1600 1600 2-9240x9050x8800

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles

Large CNC Tandem Hydraulic Press Brake Bending Machine For Producing Electrical Poles
